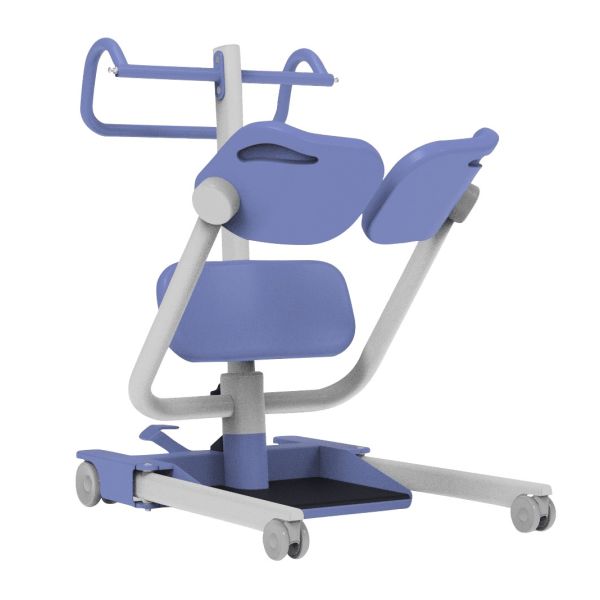

Hoyer Up Stand Aid
The Hoyer Up Stand Aid is an active transfer device for users who have some weight bearing ability, trunk strength, and the ability to participate in their transfers. The Up keeps the patient engaged and active in all of their transfers including toileting. Transport functions of all types are quick and require minimal caregiver assistance.
Users grasp the middle bar and pull themselves up into position. A padded split seat is positioned so that it swings out to allow loading or unloading, and then swings back to form a secure and comfortable seat for transfers. Simple and easy to use.
Active Transfer Device for Use in All Settings
Easy to use and non-powered, Hoyer Up is a manual stand-aid and seated transfer device suitable for sling-free transfers with caregiver assistance.
Hoyer Up is designed for users who have some weightbearing ability and can participate in the transfer promoting patient rehabilitation and functional independence. The Up simplifies care in all settings and helps maintain more
activities of daily living.
UNIQUE MODULAR DESIGN
Simplifies inventory and transport with an efficient flatpack design that requires no tools for assembly.
SWING SEAT
Secure padded swing seat surface delivers comfort and stability. Seats fold flat against the side arms when not in use.
COMFORTABLE KNEE PAD
Enhances comfort and accommodates a larger range of patient sizes with a contoured, height adjustable knee pad.
ADJUSTABLE BASE
Increases patient care accessibility with a simple and robust mechanical foot pedal providing open/close functionality.
SAFE WORKING LOAD: 440 LB / 200 KG
Features
- No-tools modular design allows for compact storage and transport
- Rugged design for use in all settings
- 440 lb safe working load
- Comfortable knee pads for secure transports
- Small footprint for negotiating tight spaces
- Easy manual adjustable base
- Intuitive push pad assists with initiating movement
Specifications
- Safe working load 450 lb
- Maximum width 24.8″
- Maximum height 43.3″
- Base height 4.0″
- Overall length 37.4″
- Unit weight 72.8 lb (Base is only 43lbs)
- 3 piece modular design with tool-less assembly
| Overall length | 37.4" | 950 mm |
| Overall width | 24.8" | 630 mm |
| Overall height | 43.3" | 1100 mm |
| Legs open - external width | 33.3" | 845 mm |
| Legs open - internal width | 28.5" | 725 mm |
| Legs closed - external width | 23.6" | 600 mm |
| Legs closed - internal width | 18.9" | 480 mm |
| Leg height | 4.3" | 110 mm |
| Casters | 3" front | 4" rear |
Weights
| Total* | 72.8 lb | 33 kg |
*Base 43 lbs, seat 21 lbs, mast 8.8 lbs
